EdMechanics EdMechanics
Educational Humanoid Robotics

Bringing the
humanoid era
into the classroom

An open-architecture educational humanoid robotics platform which bridges the gap between today's classrooms and the professional humanoid technologies.

Solution · two platforms, one ecosystem

Two platforms. One ecosystem. Built for education

Two open-architecture humanoid platforms create a continuous learning pathway — from a student's first steps in robotics to graduate-level research and international competition.

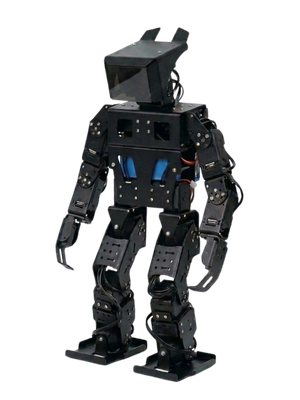

Entry platform ANIS humanoid robot
ANIS

Introduces humanoid concepts at the high-school level — an accessible, affordable entry point that builds foundational competencies before students advance to full-scale platforms.

Height
42 cm
Target audience
Middle–high school, universities, technical colleges
Compute
Single-board PC, designed by EdMechanics
Software core
Linux · ROS2 native · Isaac Sim compatible
Sensing
SmartCamera, ToF, gyro, IR sensors
Mechanics
18 DOF, all-in-one smart actuators, universal bus, metal frames
Price target
from $4,500

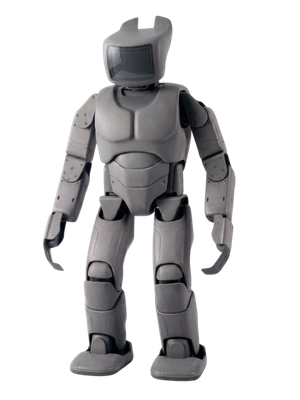

Research & competition SAMI-7 humanoid robot
SAMI-7

Research-grade and advanced competition platform: full bipedal locomotion, advanced manipulation, and the compute capacity to run Vision-Language-Action models and sim-to-real reinforcement learning on-device.

Height
94 cm
Target audience
Universities, technical colleges, research laboratories
Compute
NVIDIA Jetson Orin NX
Software core
Linux · MotorCortex · ROS2 native · NVIDIA Isaac Sim / Omniverse
Sensing
Stereo Vision module, RGB-D camera, high-performance IMU, microphone array, LiDAR (optional)
Mechanics
24 DOF, Quasi-Direct-Drive smart actuators, industrial EtherCAT & CAN bus, metal frames
Price target
from $10,000
Engineered in-house

Education-ready computer vision modules

Own vision modules enable easy-to-use, fast and humanoid-specific vision capabilities — AI-powered object tracking right out of the box.

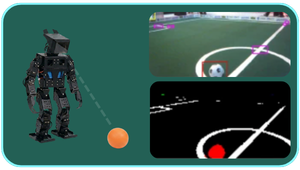

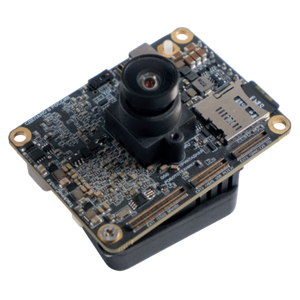

Own Tracking Camera
EdMechanics tracking camera module ANIS robot tracking a ball
  • The module is equipped with a quad-core processor (1.2 GHz) and a built-in camera with video recording up to 2592×1944 pixels.
  • Using its own computing power, the module automatically tracks objects in real time and transmits coordinates via Wi-Fi, Ethernet, or USB.
  • Provides easy-to-use AI-powered object tracking right out of the box.

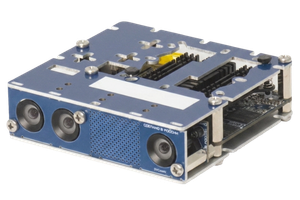

Own Stereo Vision Module

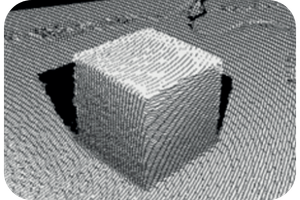

EdMechanics stereo vision module Stereo vision depth map output
  • An AI-enabled stereo vision module with three 1080p CMOS sensors and a 6-core 1.4 GHz processor.
  • A specialized hardware accelerator for real-time image segmentation and accurate depth maps.
  • For precise navigation, integrates a 6-axis inertial sensor with a synchronized stereo pair and IR-filtered cameras.
Engineered in-house

Education-ready electronics and actuators

We built our own electronic modules and smart actuator which are easy to use, enable unique capabilities, provide cost advantage, and enable sovereign supply chains.

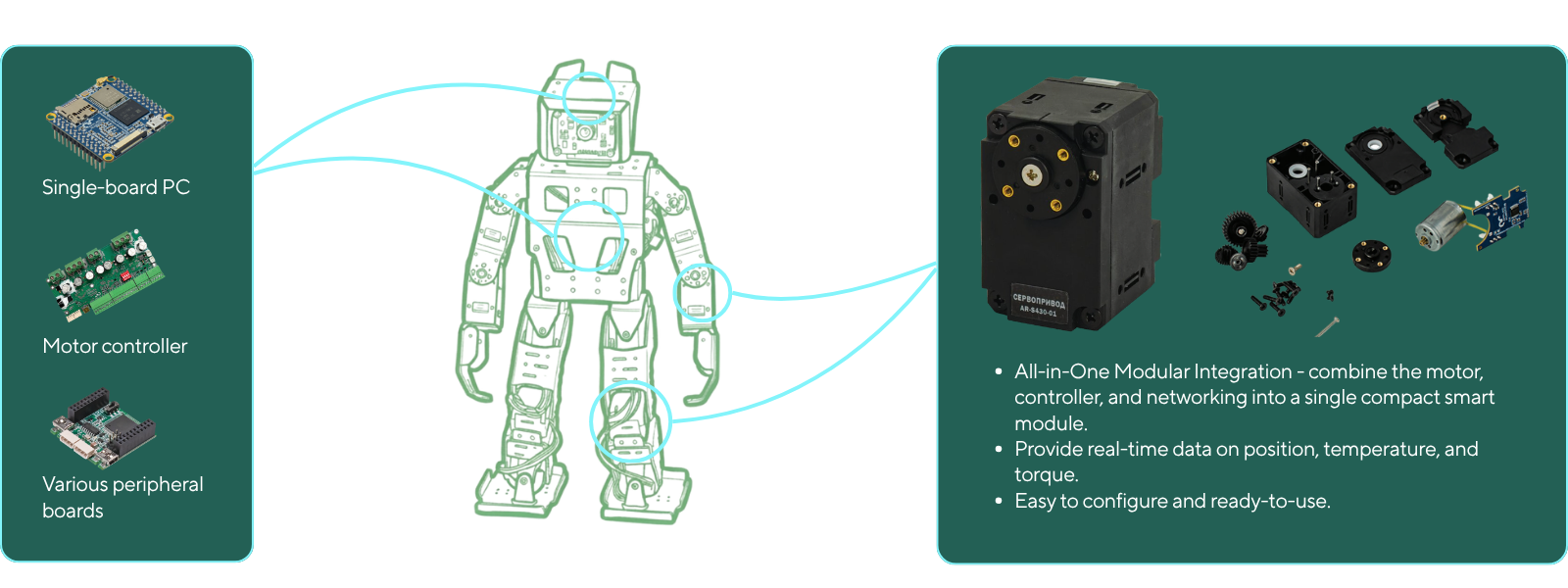

EdMechanics electronics and actuators diagram
Own Electronic Boards
  • Single-board PC, motor controllers and various peripheral boards — all designed in-house.
  • Provide unique capabilities and a cost advantage with sovereign supply chains.
  • Easy to configure and ready to use from day one.
Own Humanoid Actuator
  • All-in-One Modular Integration — motor, controller, and networking combined into a single compact smart module.
  • Provides real-time data on position, temperature, and torque.
  • Easy to configure and ready-to-use.
Engineered in-house

Education-ready software

To make education more effective, we create simple software for younger students and integrate popular open-source industrial packages for advanced learners.

Ready to use tools for beginners

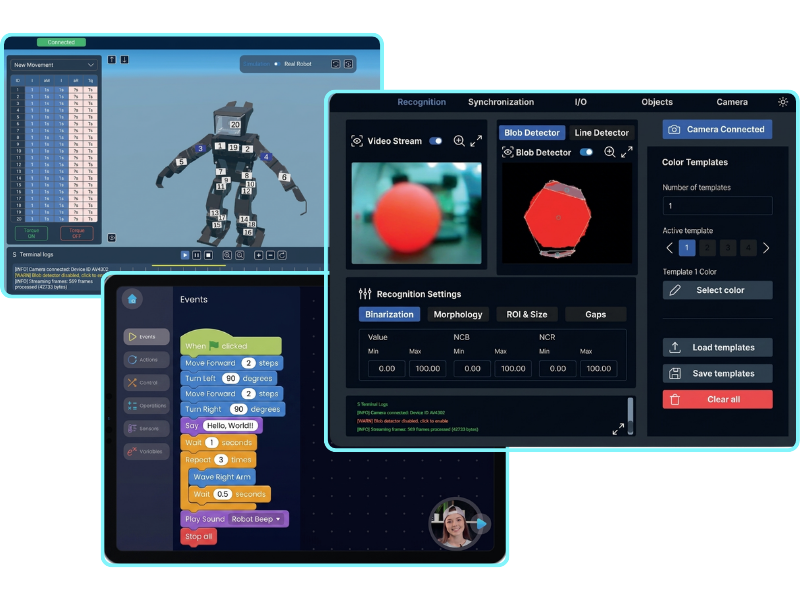

EdMechanics beginner software — block-based coding and camera settings
  • Easy-to-use motion design and simulation.
  • Smart camera settings — configure vision modules without code.
  • Block-based coding with video lessons for first-time learners.

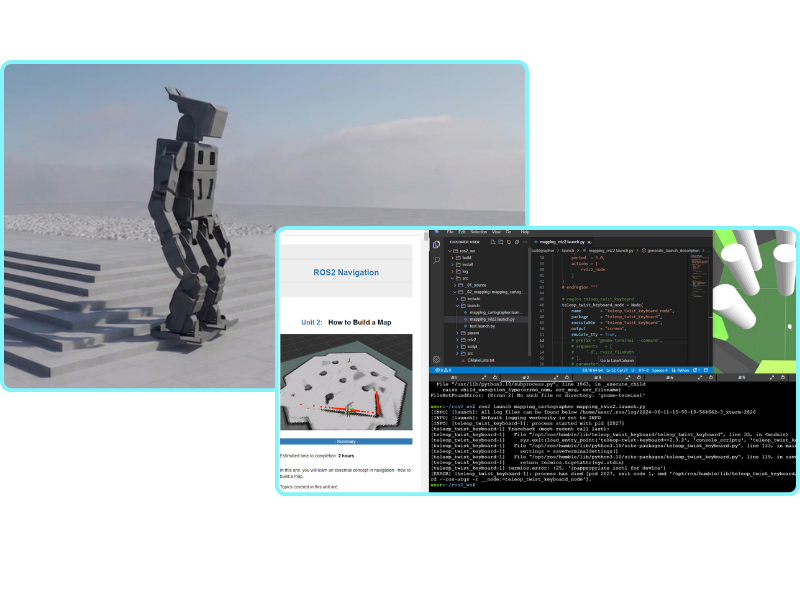

Industry standard software for institutions
EdMechanics institutional software — NVIDIA Isaac Sim and ROS2
  • NVIDIA Isaac Sim — pre-configured digital twins for simulation and reinforcement learning.
  • ROS2 native support and open industrial frameworks.
  • Python and C++ APIs for advanced research and competition development.
More than hardware

Complete ecosystem. Not just hardware.

Both platforms are AI-ready and employ the most advanced, education-friendly open software stack — enabling a continuous learning pathway from first steps to advanced research.

01

Hardware & software, optimised for education

  • AI-ready powerful platforms that run humanoid algorithms locally
  • Block-based, Python, and C++ programming — from beginners to advanced researchers
  • Open software stack with ROS2 native support and pre-configured NVIDIA Isaac Sim digital twins
  • PDPL-compliant data handling and SDAIA AI-ethics guardrails at the platform level
Easy to use, with unlimited capabilities.
02

Curriculum & teacher enablement

  • Bilingual (Arabic/English) curriculum — online & print, text and video, with lab exercises
  • Aligned with Ministry of Education and HCDP competency frameworks
  • Pre-built educational software libraries, AI models, datasets and lab configurations
  • Dedicated teacher-training programmes included
Institutions can begin teaching on day one, without prior robotics expertise.
03

Competitions & community support

  • ANIS and SAMI-7 meet the technical requirements of RoboCup, FIRA HuroCup, RoboGames and ICRA
  • Competition starter kits with pre-built software skills for humanoid contests
  • EdMechanics develops and supports a national (KSA) humanoid robotics league
  • Structured support for Saudi student teams at international events
Builds national capability and demonstrates competitiveness on the global stage.
Get in touch

Bring humanoid robotics to your institution

Tell us about your school, university or programme and we'll design a pilot — hardware, curriculum and teacher training in a single procurement.

Emailhello@edmechanics.com
ProgrammePilots for universities, schools & technical colleges
RegionKingdom of Saudi Arabia & MENA
Indicative enquiry only. Final procurement via Etimad / institutional framework agreements. We typically respond within two business days.
